5 Best Mercury Tilt and Trim Assembly Diagram Parts for 2026

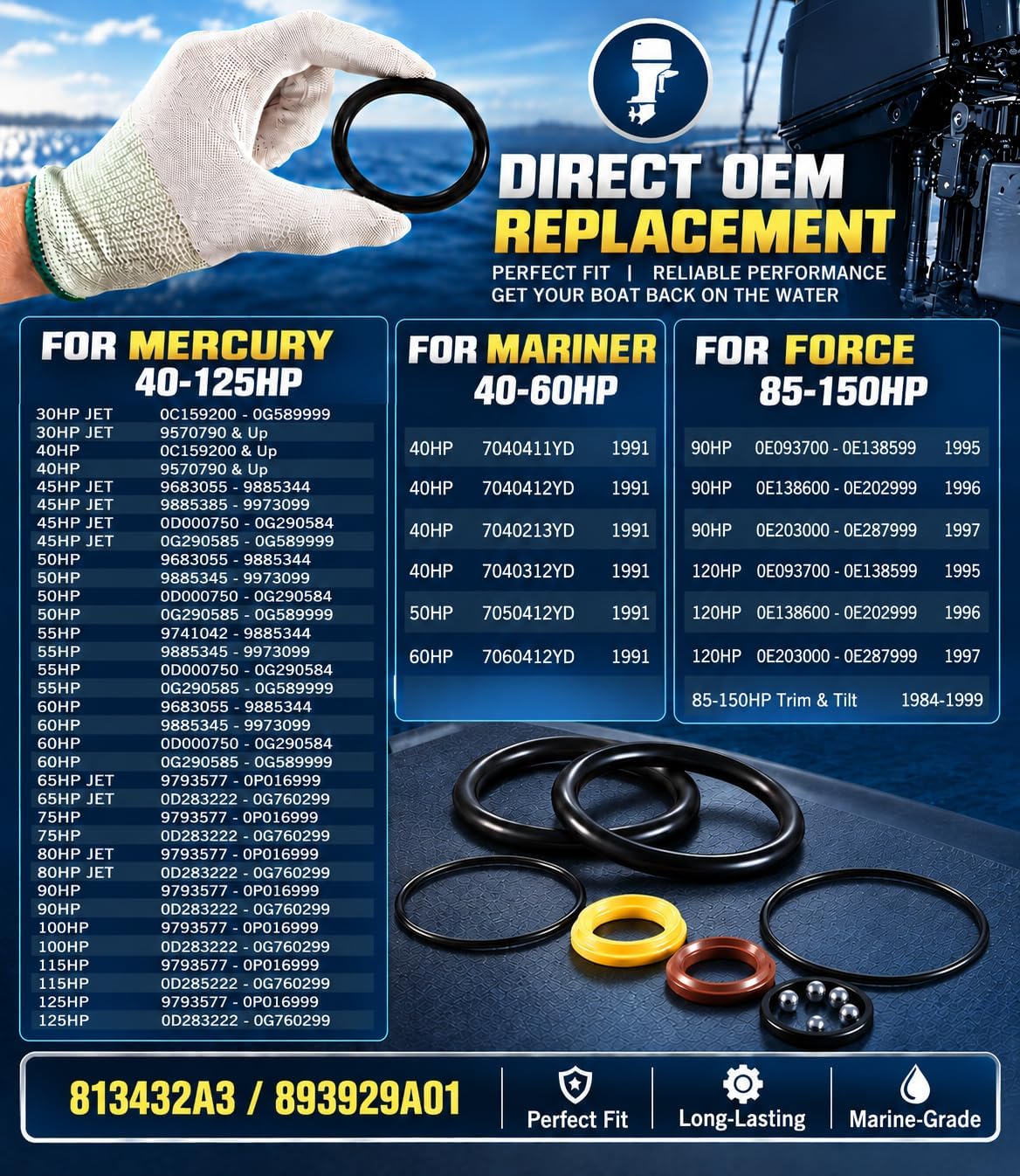

This kit is the right kind of purchase when the trim cylinder itself is still usable but the seals are no longer doing their job. It is built for Mercury, Mariner, and Force outboard trim cylinders with single ram systems, and that narrow use case matters because it points you toward a repair rather than a full replacement. The appeal is economic as much as mechanical. Instead of buying an entire cylinder, you can address the wear points that commonly cause leakage and weak hold performance. The included inner O-ring, outer O-ring, rod wiper, oil seal, and ball bearings also show that this is aimed at a real rebuild, not just a surface-level refresh.

The application range is broad enough to matter for older boats, but it is still specific enough to require attention. Coverage from 40 to 120HP and model years from 1988 to 2006 makes it useful for a lot of legacy setups, yet that range also means you need to confirm that your system is a single ram design before ordering. The manual release valve is not included, so this is best viewed as a seal-and-end-cap restoration package rather than a whole hydraulic service kit. At only 2.08 ounces, it is easy to store as a spare, but the compact package dimensions also reinforce that you are buying internal components rather than hardware-heavy assembly parts.

Against the other options here, this is the most focused repair and the least invasive solution. It will not restore a failed motor or replace a worn hydraulic valve, but it can solve the exact kind of leak that makes a trim system gradually lose confidence. That makes it the strongest choice for owners who already know the cylinder is the weak point and want to preserve the rest of the system. If the goal is to stop fluid loss and extend service life at minimal cost, this is the one to start with. It is the most precise fit for a seal-level rebuild.

This is the most complete solution in the group and the clearest answer when the existing trim and tilt system is too far gone for a partial repair. It is engineered for Mercury and Mariner outboards in the 75 to 115HP range, and that narrower horsepower window helps narrow the risk of a bad fit. The fact that it is a direct bolt-on replacement for several OEM numbers gives it a strong serviceability advantage for owners who already know they need a full replacement path. Because it is sold as a complete assembly, it targets the part of the job where downtime matters more than component-level tinkering.

The installation story is more favorable than a rebuild because the unit arrives fully assembled, pre-filled with hydraulic fluid, and includes the mounting hardware needed to get it into place. That reduces the amount of sourcing and bench work compared with piecing together internal parts. The transom mount specification is also useful because it tells you the mounting style up front, which is important when comparing it with engine-mount motor replacements. The tradeoff is that this is a bigger purchase and a more committed repair than a seal kit or valve swap, so it makes the most sense when the existing hydraulic system has broader damage or repeated failure.

Compared with the other items here, this is the most decisive option for a buyer who wants to replace the lift system rather than diagnose it piece by piece. It does not serve the same role as a seal kit or a manual valve, and that difference is exactly why it belongs in the conversation. Owners who value speed of installation and a more complete reset of the system will find it more compelling than a low-cost internal repair. If your trim assembly has reached the point where incremental fixes are no longer enough, this is the strongest all-in replacement choice.

This is the most budget-conscious motor-focused option in the set, and it occupies a useful middle ground between a full hydraulic assembly and a tiny internal valve. It is designed for Mercury and Mariner applications from 50HP to 125HP, which gives it wider applicability than some narrower replacement parts. The 12V configuration and included reservoir matter because they signal a ready-to-install motor-and-reservoir style part rather than a loose electrical component. For a buyer trying to recover lift function without buying a full system, that can be the practical sweet spot.

There are a few important setup details to respect. The motor uses 2-wire bullet connectors and has a CCW rotation, so electrical compatibility and orientation need to be verified before installation. The fact that mounting hardware is not included means you may need to reuse existing hardware or source your own, which adds a small planning step that more complete assemblies can avoid. Its 4.7-pound weight is manageable for service work, and the aluminum and stainless steel material pairing is relevant for marine durability where corrosion resistance is part of the value.

Against the other options, this one is best suited to someone who needs the motor side of the system rather than the hydraulic seals or pressure relief hardware. It is less comprehensive than the complete assembly above, but it is also far less expensive, which makes it attractive when the reservoir and motor are the main problem. The 1-year warranty gives it a more reassuring support profile than some stripped-down replacement parts. If you want a reasonably broad-fit trim motor with a reservoir and can handle a little more installation checking, this is the best value among the motor-style replacements.

This is the kind of part you buy when the trim system is fundamentally functional but pressure control is not behaving the way it should. The manual release relief valve sits in a small but important role, and the fitment range is broad, covering Mercury 30 to 300HP along with Force 40 to 120HP and Mariner 1-ram and 3-ram power trim and tilt systems. That broad compatibility makes it especially useful for diagnosing a pressure-related issue without moving straight to a full assembly replacement. It is a small part, but the consequences of the part are large because it can affect whether the system holds, releases, and protects itself correctly.

Its physical scale is also part of the appeal. At 0.317 ounces with compact package dimensions, it is clearly designed for targeted service work rather than major system rebuilds. That can simplify handling and storage, but it also means the buyer must be confident that the issue is truly the relief valve and not a broader pump or motor fault. The replacement part-number list is helpful because it supports direct match verification against older systems where visual identification alone can be unreliable. Because the package includes one valve only, this is a spare-part solution, not a kit with supporting hardware.

Relative to the other products, this is the most surgical fix. It will not restore a failed motor, and it will not replace worn cylinder seals, but it can be the right move when trim pressure needs control more than overhaul. That makes it especially appealing to owners who already have a known valve issue and want the least disruptive repair path. The price is low enough to make diagnostic repair practical, which is valuable when you are trying to avoid replacing a part assembly that is still healthy. For pressure-related trim troubleshooting, this is the smartest targeted buy.

This motor is aimed at the higher-output end of the Mercury range, and that alone will make it the right category for a lot of repower and replacement decisions. It covers Mercury Marine trim and tilt applications from 135HP to 225HP, which places it above the smaller 50 to 125HP replacements in this roundup. The 12V configuration and reversible operation are both important because they align the motor with standard trim control behavior while still giving the system the ability to raise and lower the engine as needed. For buyers trying to restore a heavier-duty outboard, those details matter more than a generic motor label.

The connector setup is straightforward, using 2-wire bullet style connections. That simplifies electrical matching, but it still requires you to verify wiring before installation. The inclusion of a sealing ring and cable ties is a modest but useful touch because it gives you a little more support at the point of installation. Material choice is another strength here. The marine-grade aluminum alloy construction is intended to resist corrosion and rust, which is especially relevant for a part that lives close to wet, exposed hardware. That construction supports the part’s positioning as a more durable replacement for larger engines.

Compared with the other motor options, this is the stronger pick for higher-horsepower Mercury owners who do not want to underspec the replacement. It is not the least expensive path, and it is not as complete as a full assembly, but it is better matched to larger engine applications than a smaller-range motor. That makes it the most sensible option when horsepower range is the main gatekeeper and durability matters. If your priority is restoring trim function on a 135 to 225HP Mercury without stepping down to a lower-capacity part, this is the best fit in the group.
