Choosing throttle and shift parts for an outboard is mostly about avoiding an expensive mismatch. The right cable or control box has to match the controller style, engine family, connector format, and routing length, or the helm can feel stiff, delay response, or fail to install cleanly. That matters even more when you are working from a throttle linkage Mercury outboard throttle cable diagram, because the diagram only helps when the physical parts in front of you actually fit the same control architecture.
The four options below cover different layers of the control system. Two are replacement cable sets, one is a side-mounted remote control box, and one is a connector-focused repair part. That mix matters because buyers usually do not need a single generic solution. Some need a full throttle-and-shift cable replacement, others need compatible ends, and some need a helm control box with wiring and safety features. The best choice depends on what part of the linkage chain is worn, what controller series you have, and how much installation work you want to take on.
Top Throttle Linkage Mercury Outboard Throttle Cable Diagram on the Market
Atesilor Gen1/Gen2 Control Cables
- 2-piece throttle and shift set
- Gen1 and Gen2 options
- 12-foot cable length
- Stainless steel cable core
- 1-year manufacturer warranty
KooingTech Throttle Cable End Fittings
- Two-piece end connector set
- OE 67275-95600 fitment
- ABS and copper construction
- Heat-resistant screw mouth
- Compact replacement parts
VEVOR Side-Mounted Control Box
- Mercury PT 2-stroke compatibility
- 16.3-foot harness
- Power trim switch
- Emergency stop lanyard
- Die-cast aluminum housing
AmarinePlay 33C Throttle Cable Set
- 33C throttle and shift set
- 15-foot cable length
- Stainless steel core
- PE rubber outer jacket
- #10-32 threaded ends
This article may contain affiliate links. As an Amazon Associate, the website may earn from qualifying purchases at no additional cost to you.
Throttle Linkage Mercury Outboard Throttle Cable Diagram Reviews
Atesilor Gen1/Gen2 Control Cables
- Size
- 12ft
- Style
- Gen 1
- Material
- Plastic, Stainless Steel
- Number of Items
- 2
- Warranty Description
- 1 Year Manufacturer
Advantages
- Includes both throttle and shift cables
- Gen1 and Gen2 compatibility choices
- Corrosion-resistant stainless steel core
- 1-year manufacturer warranty
- Two-piece replacement in one package
Limitations
- Length must be matched carefully
- Controller series must be identified first
This two-cable package targets buyers replacing both throttle and shift lines at once. The set includes one throttle cable and one shift cable, which keeps the helm repair paired instead of piecemeal. The listed 12-foot length is a practical starting point for many mid-size routing runs, but the real value is the Gen1 and Gen2 choice. Matching the controller series matters because the wrong interface can turn a simple replacement into a frustrating fitment problem.
Installation depends on getting the routing length right before ordering. The product guidance warns that cables that are too short can create tight operation and breakage risk, while cables that are too long can slow response. That is exactly the kind of tradeoff a throttle linkage diagram cannot solve by itself, because the diagram shows paths, not cable stretch or slack. The stainless steel core and polyethylene outer material are the meaningful durability points here, especially in humid or salt-exposed environments where corrosion resistance affects long-term control feel.
Among the selected products, this is the clearest direct cable replacement for a Mercury-linked control setup that uses the correct Gen1 or Gen2 interface. It is less specialized than a full control box and more complete than a connector-only repair. That makes it the strongest choice for buyers who already know they need fresh throttle and shift cables rather than a helm assembly. Choose it when the control path is the problem and the controller family has already been identified.
PHOTO: Atesilor Gen1 Gen2 Control – Throttle and Shift Cables → Source: Amazon.com
KooingTech Throttle Cable End Fittings
- Item Weight
- 0.317 ounces
- Package Dimensions
- 6.77 x 1.77 x 0.43 inches
Advantages
- Very low replacement cost
- OE number helps confirm fit
- ABS and copper build
- Compact two-piece set
- Useful for targeted repairs
Limitations
- Only suits matching connector jobs
- Not a full cable replacement
This is the smallest and most targeted part in the group. Instead of replacing an entire cable or control box, it addresses the cable end connector, which is useful when the rest of the control path is still serviceable. The OE 67275-95600 reference is the most important fitment clue, because connector parts live or die on exact matching. For a damaged or worn end fitting, a low-cost repair like this can restore usable throttle and shift operation without opening the door to a larger teardown.
The ABS and copper construction points to a sensible balance of housing toughness and conductive hardware. The screw mouth is described as easy to tighten without slipping, which matters because a connector that loosens or rounds out quickly becomes a repeat repair. Its small size also means it is easy to store as a spare or keep in the boat tool kit. That said, the narrow purpose is the whole story here. It is not a universal cable replacement, and it only makes sense when the matching OE number is confirmed.
Compared with the other products, this one is the repair specialist. It cannot solve routing length, controller series, or helm assembly wear, but it can solve a failed connector without forcing you into a full system replacement. That makes it the right pick for budget-minded buyers who have already traced the problem to the end fitting. If the cable body and control box are still sound, this is the most economical path back to usable throttle and shift control.
PHOTO: KooingTech Throttle Cable End – Cable End Connectors → Source: Amazon.com
VEVOR Side-Mounted Control Box
- Item Weight
- 9.8 pounds
- Package Dimensions
- 17.72 x 11.81 x 6.69 inches
Advantages
- Complete side-mounted control box
- Power trim switch included
- Emergency stop lanyard
- 16.3-foot harness length
- Die-cast aluminum housing
Limitations
- Higher cost than cable parts
- Requires more installation planning
This is the most complete control solution in the group. It is designed for Mercury PT 2-stroke outboard engines and combines a side-mounted throttle control with a power trim switch, lanyard, and a 16.3-foot harness. That combination matters because a helm upgrade is not just about moving the lever. It is about integrating throttle control, trim adjustment, and emergency stop behavior into one assembly that matches the boat’s wiring layout.
The hardware choices suggest a focus on repeated use in a marine environment. The interior uses aluminum alloy ADC2+ASA, the housing is die-cast aluminum, and the handle uses crack-resistant ABS. The harness includes 8-pin and 4-pin plugs plus a 9.4-inch cable for meter connection. Those details are important because they reduce the odds of piecing together separate adapters after installation starts. The friction-adjustable throttle lever also gives some control over lever feel, which can matter when a helm is used by more than one operator.
Against the other picks, this is the premium path. It is more expensive and more installation-heavy than a cable pair or connector fix, but it replaces a larger portion of the control system and adds safety and trim functions that the others do not. That makes it the strongest option for buyers who want a complete helm-side upgrade rather than a repair. Choose it when engine compatibility is confirmed and you want the control box itself to do more of the work.
PHOTO: VEVOR Side-Mounted Control Box – Remote Control Box → Source: Amazon.com
AmarinePlay 33C Throttle Cable Set
- Size
- 15FT-2PCS
- Material
- stainless steel core with PE outer jacket
- Warranty Description
- 1 year
- Package Weight
- 1.84 kg
Advantages
- Long 15-foot cable length
- Includes throttle and shift cables
- Stainless steel core
- Flexible PE rubber jacket
- 1-year warranty
Limitations
- Yamaha-focused fitment
- Measure routing path carefully
This cable set is built for Yamaha outboard, inboard, and stern drive applications that use #10-32 threaded cable ends. The 15-foot length is useful for boats that need more routing reach than a shorter 12-foot pair can provide, and the package includes one throttle cable and one shift cable. That makes it a practical alternative for longer helm-to-engine runs where cable selection is driven by path length rather than by a simple parts swap.
The stainless steel core and PE rubber outer jacket are the main durability signals here. Together they point to corrosion resistance and a flexible cable body that is meant to keep moving without kinking under repeated steering and control changes. The M5 threaded ends help secure attachment at both ends. The installation guidance also stresses measuring the actual routing path and leaving extra room for engine movement, which is exactly the kind of detail that prevents a cable from binding after installation.
Compared with the Atesilor set, this one is aimed at buyers who need more reach and a different engine family, while still staying in the replacement-cable category. It does not try to be a complete control box, and it does not solve connector-only damage. Its value is in long, flexible routing with straightforward replacement logic. If your project needs a longer paired cable set for a Yamaha-compatible setup, this is the most sensible pick in the group.

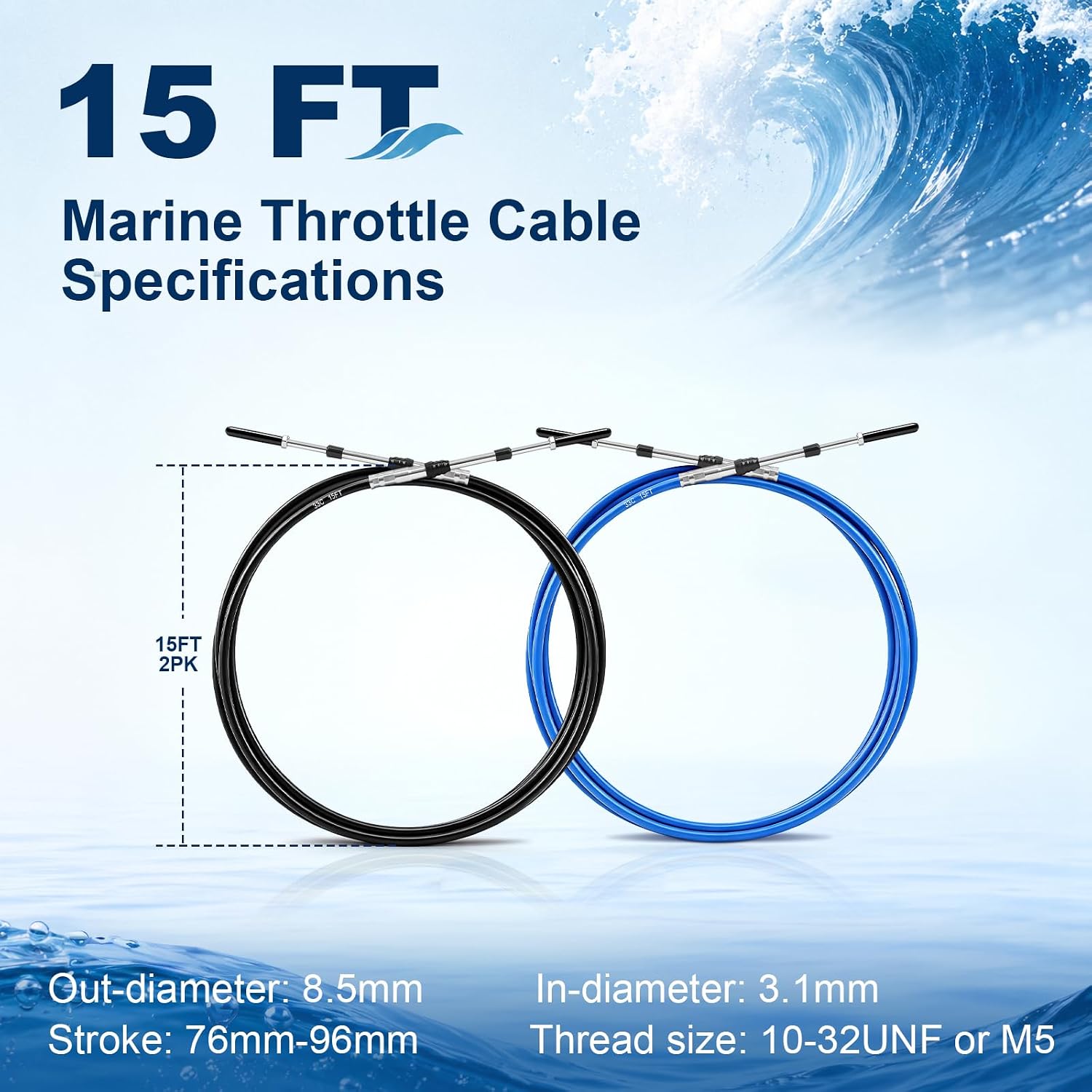

PHOTO: AmarinePlay 33C Throttle Cable – Marine Cable Set → Source: Amazon.com
How to Choose Throttle Control Parts
Throttle and shift components look similar until you try to fit them to a real boat. Then the differences between cable length, connector standard, controller family, and helm layout become the deciding factors. The safest buying process starts with identifying which part of the linkage chain is actually worn. A damaged connector, a sticky cable, and a worn control box each call for a different fix, and the wrong one can waste time or leave you with a poor-feeling helm.
Match the Control Path
Start by deciding whether you need a cable, a connector, or a full control box. A cable replacement addresses movement between the helm and engine. A connector repair only makes sense when the cable body is still sound. A complete control box is a larger investment, but it is the right answer when the lever, trim, or safety controls are part of the problem. That first distinction prevents overbuying and underfixing at the same time.
Verify Engine Compatibility
Outboard controls are not interchangeable just because they look similar. Controller family, engine brand, and threaded end style all affect whether the part will actually mount and operate correctly. Before ordering, compare the existing hardware with the part’s compatibility details and connector format. If the system uses a specific interface or OE number, treat that as a hard requirement. The cost of a mismatch is not just inconvenience. It can stop the installation entirely.
Get Routing Length Right
Cable length is one of the most important decisions in the category. Too short and the cable can bind or pull tight during steering and engine movement. Too long and you may get sluggish operation or awkward routing loops. The correct way to size a replacement is to measure the actual routing path, not a straight line between the helm and engine. Add room for movement so the cable can travel without strain when the motor turns or trims.
Choose Durable Materials
Marine control parts live in a harsh environment, so material quality matters. Stainless steel cores, corrosion-resistant hardware, and tough outer jackets are worth paying attention to because they help preserve smooth movement over time. In salty or humid conditions, weak hardware can seize, crack, or wear unevenly. A sturdier material set does not just last longer. It also keeps the throttle and shift feel more predictable, which is important when you are docking, shifting, or running at low speed.
Plan for Installation
Some parts are simple swaps. Others require careful routing, power disconnection, and connector checks before they go in. A connector-only repair is usually faster, while a full control box installation often needs more attention to wiring harnesses, ignition safety, and lever adjustment. Think about whether you want a weekend repair or a more involved helm rebuild. The right part is not always the most advanced one. It is the one that matches both the boat and your willingness to install it correctly.
Decide on Control Features
Once fitment is solved, look at what the part actually changes in use. A basic cable set restores motion, which is enough for many repairs. A control box can add trim control, an emergency stop lanyard, and a more refined lever feel. Those extras matter most when the helm is used often, when safety is a priority, or when you want easier engine adjustment underway. Extra features are only worthwhile if they fit your boat and your maintenance expectations.
Control Cable Comparison Table
| Product | Best For | Length | Material | Warranty | Weight | Color |
|---|---|---|---|---|---|---|
| Atesilor Gen1/Gen2 Control Cables | Best cable replacement set | 12ft | Plastic, Stainless Steel | 1 Year Manufacturer | 1.52 kg | Black |
| KooingTech Throttle Cable End Fittings | Best connector repair | Not Specified | Not Specified | Not Specified | Not Specified | Not Specified |
| VEVOR Side-Mounted Control Box | Best full control box | Not Specified | Not Specified | Not Specified | Not Specified | Not Specified |
| AmarinePlay 33C Throttle Cable Set | Best long cable set | 15FT-2PCS | stainless steel core with PE outer jacket | 1 year | 1.84 kg | Blue and Black |
How We Tested & Analyzed Throttle Linkage Mercury Outboard Throttle Cable Diagram
This roundup focused on category-critical compatibility and installation factors rather than generic feature counts. For throttle and shift components, the most useful evidence is the kind that determines whether the part will physically fit and operate correctly. That includes controller family, connector standard, cable length, materials, included hardware, and any safety or trim functions that change how the helm behaves in real use. The goal was to separate simple repair parts from complete control solutions and judge each on the work it is actually meant to do.
Comparisons also weighed practical consequences. Longer cables were evaluated as routing solutions, not as automatic upgrades. Shorter or more targeted parts were treated as efficient repairs only when their fitment clues were specific enough to matter. Construction details such as stainless steel cores, aluminum housings, ABS components, and jacket materials were considered for their impact on corrosion resistance, durability, and control feel. Where the product record included a warranty or explicit installation guidance, that information was used as a real buyer signal rather than decorative copy.
The main limitation in this category is that compatibility is often narrower than it appears. A part can look like a throttle or shift component and still be wrong because of the wrong controller series, thread pattern, engine family, or cable length. For that reason, the analysis favors products that disclose enough detail to support a confident purchase decision. When a detail was missing, it was treated as unknown rather than filled in from inference. That approach keeps the recommendations grounded and reduces the risk of a costly mismatch.
Frequently Asked Questions
How do I know whether I need a cable or a control box?
A cable is the right answer when the lever movement is still the main issue and the helm assembly is otherwise sound. A control box is the better choice when the lever, trim controls, or safety functions are worn or outdated. If the problem is only a broken end or connector, a smaller repair part may be enough.
Why does cable length matter so much?
Length affects how the cable routes and moves during steering, shifting, and engine trim. A cable that is too short can bind or pull tight. One that is too long can create excess slack and a less responsive feel. The best measurement is the actual routing path with room for engine movement.
What compatibility details should I check first?
Start with the controller family, engine brand or model family, and the threaded end or connector standard. If the part references an OE number or a specific interface style, that information should match your existing hardware before you buy. Those details matter more than appearance because many controls look similar but are not interchangeable.
Are stainless steel and aluminum worth prioritizing?
Yes, especially in marine use. Stainless steel cores, corrosion-resistant hardware, and aluminum housings help parts hold up in humidity and salt exposure. That usually means smoother operation for longer and fewer problems from rust or seized movement. Material quality does not replace correct fitment, but it is one of the clearest durability signals.
Final Thoughts
Throttle linkage parts are easy to underestimate until the wrong one is on the boat. The safest path is to identify the failed section first, then match length, connector style, and controller family before you order. That approach narrows the field quickly and keeps you from replacing more hardware than necessary. It also helps you decide whether you need a simple cable swap, a connector repair, or a full helm-side upgrade.
For most buyers, the best choice is the one that solves the problem with the fewest compromises. A matched cable set is the cleanest fix when the routing and interface are known. A connector part is the economical answer for localized damage. A full control box earns its place when you want integrated trim and safety controls. Once you know which of those jobs you are actually doing, the right part becomes much easier to spot.
